Butterfly valve wafer Electric actuated-230V-AC IP67 Ductile iron-Stainless.steel-NBR
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
On-Off
| Disc design: | Centric | Material body: | Ductile iron |
| Connection: | Wafer between flanges | Material disc: | Stainless steel 316 |
| Actuating: | Electric | Material seat: | NBR |
| Flange drill: | PN10/16 & 150lbs | Temperature valve: | -10 °C / + 80 °C. |

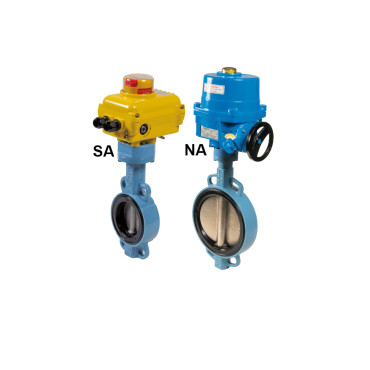

| Pressure: | 16bar till DN350 | SA actuator: | DN40 up till DN100 |
| Electric: | 230V IP67 | NA actuator: | DN125 up till DN400 |
Datasheet (PDF)
| SKU | MXT-1151010000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | NBR |
