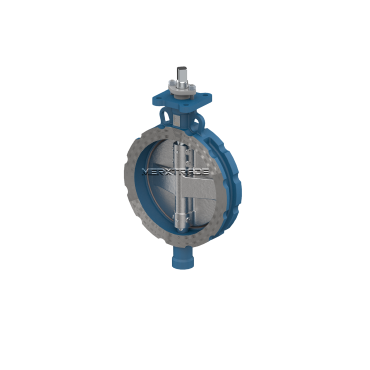

Butterfly valve High Performance double-eccentric wafer Stainless steel bare-shaft
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | Double eccentric / High performance | Material body: | Stainless steel 1.4408 |
| Connection: | Wafer Type | Material disc: | Stainless steel 1.4408 |
| Connection: | PN10/16 DN50-DN150 | Material seat: | PTFE |
| Connection: | PN10 DN200-DN400 | Material shaft: | Stainless steel 1.4418 |
| Temperature: | -50°C +180°C | Operation: | Bare-Shaft |
| Pressure: | 16 Bar DN50-DN150 | Top flange: | ISO 5211 |
| Pressure: | 10 Bar DN200-DN400 | Type: | Soft seat PTFE |
| Type approvals: | Lloyd's Register of Shipping | Face to Face: | EN 558-1 ISO 5752 |
| American Bureau of Shipping | Standard: | API 609/EN 593 |
| Applications: | |||
| Marine service | Petrochemical systems | Oil refining industry | Tanker ships type C |
| Power plants | Tanker ships loading systems | Chemical plants | Coal and mining industry |
Datasheet (PDF)
| SKU | MXT-2291BS2000 |
|---|
| Body material | Stainless steel-CF8M-316 |
|---|---|
| Disc / Ball / Wedge | SS-A351-CF8M-316 |
| Seat | PTFE |
