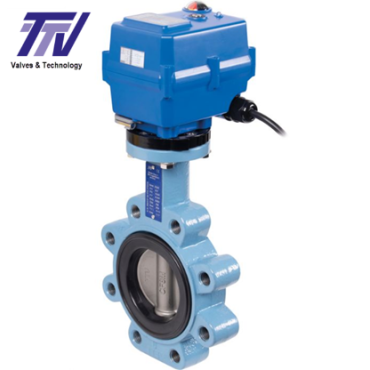

Butterfly valve Lug electric actuated TTV 230V AC GGG50/CF8M/GGG50/EPDM PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
DIN
| Model: | Lug | Material body: | Ductile iron GGG50 |
| Connection: | PN10/16 ANSI 150 | Material disc: | St.St. ASTM A351 CF8M up to DN100 |
| Pressure: | 16 bar up to DN150 | Material seat: | EPDM |
| Temperature: | -10°C-110°C | Operation: | Electric capacitor standard on/off execution 230V AC |
| Electrical Actuator standard on/off execution |
| Casing + lid: | Plastic (ABS) | Motor protection: | Thermal switch |
| Gear box: | Treaded steel pinions | Limit switches: | 2 adjustable switches |
| Anti-condensation: | Integrated | Auxiliary switches: | 2 adjustable dry switches |
| Supply voltage: | 230volt AC | Manual control: | By key |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
Datasheet (PDF)
| SKU | MXT-1160TCN000 |
|---|
| Body material | Ductile iron |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | EPDM |
