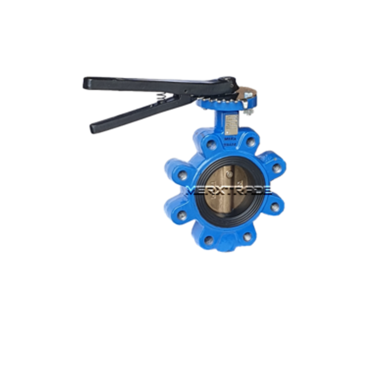

Butterfly valve LUG lever GGG40/alubronze/NBR PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
DIN
| Model: | Lug type bare-shaft | Material body: | Nodulair cast iron GGG40.3 |
| Connection: | DIN PN16 DN40~DN150 | Material Disc: | Aluminium bronze BS1400-AB2 |
| Connection: | DIN PN10 DN200 | Material shaft: | Stainless Steel 1.4122 |
| Pressure: | 16 Bar DN40~DN150 | Material seat: | NBR |
| Pressure: | 10 Bar DN200 | Operation: | Lever |
| Temperature: | -15°C +80°C | Standard: | API 609/EN 593 |
| Top flange: | ISO 5211 | Face to Face: | EN 558-1 (ISO 5752) |
Datasheet (PDF)
| SKU | MXT-6821P00000 |
|---|
| Body material | Ductile iron GGG40. |
|---|---|
| Disc / Ball / Wedge | Aluminium-Bronze |
| Seat | NBR |
