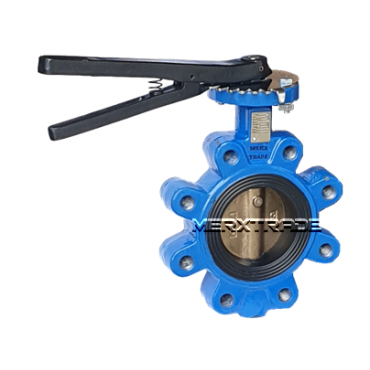

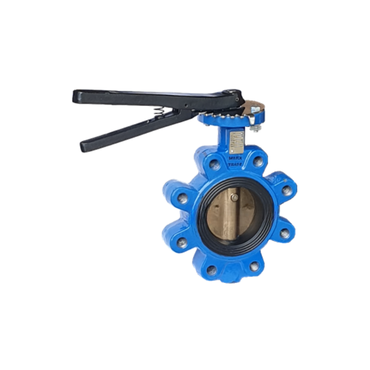

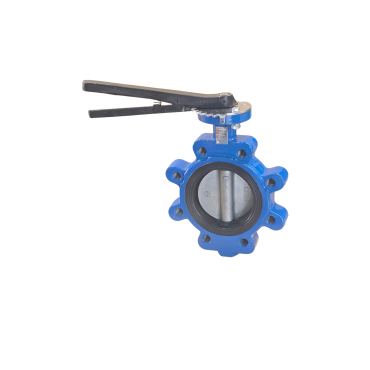

Butterfly valve lug-type lever - GGG40 / St.St.316 / EPDM - PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
DIN
| Model: | LUG | Material body: | Ductile iron GGG40 |
| Connection: | PN10/16 | Material disc: | St.St.ASTM A351 CF8M |
| Pressure: | 16 bar | Material seat: | EPDM |
| Pressure: | 10 bar DN200 and over | Ends: | DN32 up to DN150 PN10/16 |
| Temperature: | Max. + 110°C | Ends: | DN200 PN10 |
| Gearbox recommended above DN200 |
| SKU | MXT-57305179 |
|---|
| Body material | Ductile Iron-GGG40- EN-GJS-400-15 |
|---|---|
| Disc / Ball / Wedge | Stainless.steel |
| Seat | EPDM |
