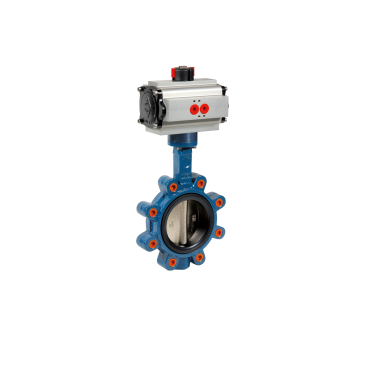

Butterfly valve LUG type pneumatic actuator double acting - GG25-Stainl.St.-EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
DIN
| Pneumatic actuator information: |
| Model Double acting |
| EN 15714-3 certified - ATEX EEx II 2G/D c for areas 1, 2, 21 & 22 |
| Valve mounting according to ISO 5211 |
| Limit switch box bracket connection & solenoid pilot valve connection according to NAMUR VDI/VDE 3845 |
| Rack and pinion actuator - 90° operating angle (±5°) |
| Anodized aluminum body - Epoxy coated aluminium caps |
| Position indicator - Adustable limits screws |
| Environment working temperature: -30°C/+100°C - Max. air supply: 8 bar - Air supply connection 1/4". |
| Butterly valve information: | |||
| Model: | LUG type | Material body: | Cast iron GG25 |
| Pressure: | PN16 | Material disc: | CF8M - 316 |
| Connection: | PN10 DN40 up to DN300 | Material seat: | EPDM |
| Temperature: | -10°C/+110°C. | Material paint: | Epoxy coated |
PN16 execution on request above DN150
Datasheet (PDF)
| SKU | MXT-1133DA0000 |
|---|
| Body material | Cast iron GG25 |
|---|---|
| Disc / Ball / Wedge | CF8M-316 |
| Seat | EPDM |
