Butterfly valve wafer Electric actuated-230V/AC-GG25-Nickel.plated GGG40-EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
On-Off
| Model: | Centric | Material body: | Cast iron GG25 |
| Connection: | Wafer | Material disc: | Nickel plated GGG40 |
| Actuating: | Electric 230Volt from DN350 400Volt |
Material seat: | EPDM |
| Flange: | PN 10/16 and 150 lbs | Temperature: | -10 °C / + 110 °C. |
| Pressure: | 16 bar up to DN300 above 10bar |

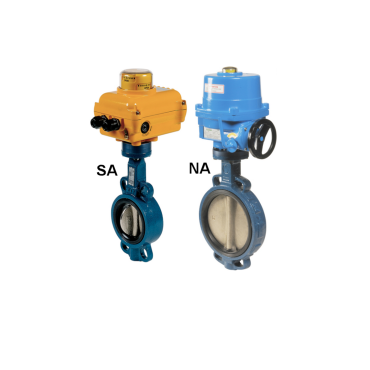

SA actuator: | DN40 up to DN100 |
| Value: | 230V AC actuator IP67 | NA actuator: | DN125 up to DN600 |
| Option: | SA actuator 24V AC/DC 12V DC | ||
| From DN350: |
NA actuator 400V 24V AC/DC |
Datasheet (PDF)
| SKU | MXT-1125262000 |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | Nickeled ductile iron |
| Seat | EPDM |
