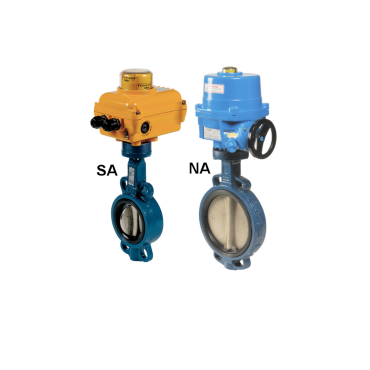

Butterfly valve wafer Electric actuated-230V/AC-GG25-St.St.-EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
On-Off
| Model: | Centric wafer | Material body: | Cast iron GG25 |
| Connection: | Wafer | Material disc: | Stainless steel CF8M |
| Actuator: | Electric quarter turn | Material seat: | EPDM |
| Flange: | PN 10/16 & ANSI 150 lbs | Temperature: | -10 °C / + 110 °C. |
| Pressure: | 16 bar up to DN300 | SA actuator: | DN40 up to DN100 |
| Power: | 230V AC actuator IP67 | NA actuator: | DN125 up to DN300 |
| Option: | SA actuator 24V AC/DC 12V DC | ||
| NA actuator 400V 24V AC/DC |
Datasheet (PDF)
| SKU | MXT-1123262000 |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | EPDM |
