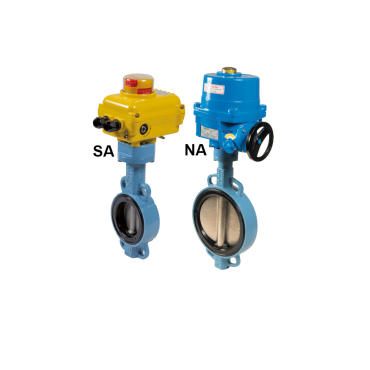

Butterfly valve wafer electric excellence range 230V AC IP67 GGG50/Stainless.st/EPDM PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
On-Off
| Model: | Wafer type IP67 | Material body: | Duct.iron EN GJS 500-7 rilsan coated |
| Connection: | Between flanges PN10/16 | Material gate: | ASTM A351 CF8M |
| Pressure: | 16 Bars > DN300 see PDF | Material seat: | EPDM |
| Temperature: | -10°C / +90°C | Operation: | Electric 230V AC |
Datasheet (PDF)
| SKU | MXT-1153110000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | EPDM |
