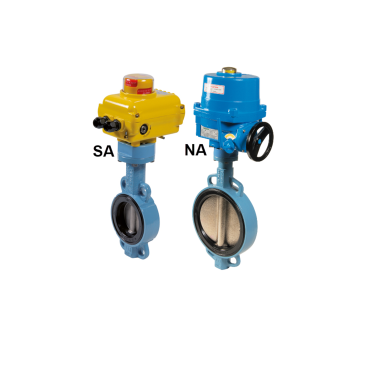

Butterfly valve wafer electric excellence range 230V AC IP67 GGG50/Stainless.St/FKM PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
VITON®
On-Off
| Model: | Wafer type IP67 | Material body: | Duct.iron EN GJS 500-7 rilsan coated |
| Connection: | Between flanges PN10/16 | Material gate: | SS ASTM A351 CF8M |
| Pressure: | 16 Bars > DN300 see PDF | Material seat: | FKM |
| Temperature: | -5°C / +150°C | Operation: | Electric 230V |
Datasheet (PDF)
| SKU | MXT-1154110000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | FKM-FPM-Viton® |
