Butterfly valve wafer gearbox and limit switch excellence range for fire network IP65 GGG50/Stainless.st/GGG50/EPDM PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| Model: | Fire netwerk IP65 | Material body: | Duct.iron EN GJS 500-7 |
| Connection: | Between flanges PN10/16 | Material disc: | St.St. CF8M up to DN100 |
| Pressure: | 16 Bars | Material disc: | DN125> Ductile iron + coating |
| Temperature: | -10°C / +110°C | Material seat: | EPDM |
| Postion indicator: | Electric singal check PDF | Operating: | Gearbox |
| SKU | MXT-5811142 |
|---|
| Body material | Ductile iron GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | EPDM |

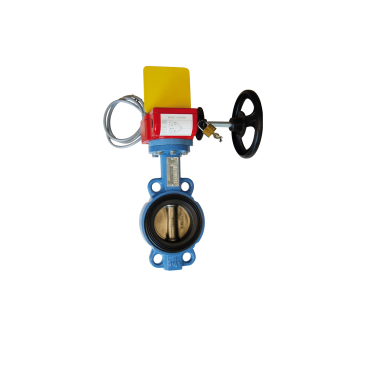

Wafer butterfly valves TTV for closing or setting fire networks and sprinkler with lockable gearbox and sensors
SPECIFICATIONS :
• CNPP
• Long neck for isolation
• For fire network
• IP65 gearbox
• Gear box with position indicator
• Aluminium gear box with locking device
• Valve indicator ( indicate valve position : opened or closed )
• Wafer type
• Between flanges PN10/16 and Class 150 (PN20)
• Full crossing stem
• Stainless steel disc up to DN100 included
• Chromed ductile iron disc from DN125 to DN300
• Rilsan coated body color RAL 5024 250-300 microns thickness
USE :
• For fire network and sprinkler
• Min and max Temperature Ts : - 10°C to + 110°C
• Max Pressure Ps : 16 bars (see graph page 5 PDF)
STANDARDS :
• Manufacturer certified ISO 9001:2015
• DIRECTIVE 2014/68/UE : CE N° 0038 Risk Category III module H
• Certificate 3.1 on request
• Designing according to NF EN 593 v 2004
• Marking according to NFE 29-130
• Tests according to EN 12266-1, Rate A
• Between flanges according to EN 1092-1 PN10/16
• ISO 5211 mounting pad
• Length according to :
o ISO 5752 short series 20
o EN 558 series 20 (NF 29305)
o BS 5155 series 4
o DIN 3202 part 3, series K1
o API 609 Table 1 up to DN600
o ASME B16.10 Table 8 column 3
• Belongs to the list of materials that can be used as part of an installation according to the rule APSAD R1
