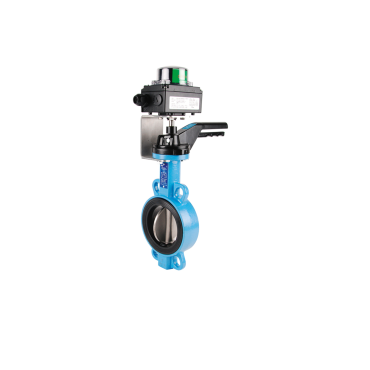

Butterfly valve wafer with limit switch box SF01200 Ductile iron / Stainless.st / EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafer type | Material body: | Ductile iron GGG50 |
| Connection: | Between flanges | Material disc: | St.st. 316 |
| Actuating: | Lever with position lock | Material seat: | EPDM |
| Position indicator: | Limit switch SF 01200 | ||
| Switch info: | 2 SPDT silver plated mechanical-switches 250V AC -5A | ||
| Material switch body: | Aluminium | ||
| Ambient temperature switch: | -20°C / +80°C | ||
| IP Code: | IP67 | ||
| SF model: | Outside ATEX zone | ||
Datasheet (PDF)
| SKU | MXT-1153012000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M-316 |
| Seat | EPDM |
