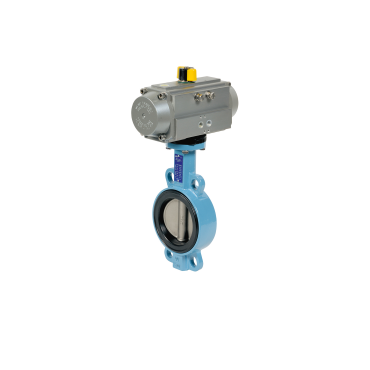

Butterfly valve wafer pneumatic Alphair single act GGG50/Ductile(St.St)/EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafer pneumatic acting | Material body: | Ductile iron EN GJS-500-7 |
| Connection: | Flanges PN10/16 ANSI 150# | Material disc: | DN32-100 St.St. CF8M |
| Pressure: | 10 bar check tech data PDF | Material disc: | Ductile iron GLS 500-7 coated |
| Temperature: | -10°C +110°C | Material seat: | EPDM |
| Brand: | TTV | Operation: | pneumatic single acting RES |
| Pneumatic actuator Alphair RES single acting |
| Casing body: | Aluminium anodized | Sealing: | NBR nitrile rubber |
| Sight: | Position indicator on top | Environment temp:: | -20°C +80°C |
| Air supply: | Max 8 bar | Brand: | Alphair |
Datasheet (PDF)
| SKU | MXT-1150LRS000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | EPDM |
