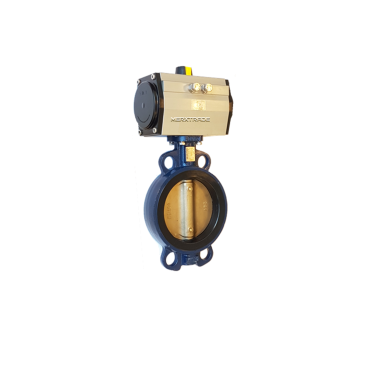

Butterfly valve wafer pneumatic double Acting GGG40/St.St./EPDM PN10/16/JIS 10K/ANSI150#

EPDM
Butterfly valve wafer pneumatic double Acting GGG40/St.St./EPDM PN10/16/JIS 10K/ANSI150#
Model: Wafer with pneumatic double acting Material body: Nodulair cast iron GGG40
Connection: PN10/16 JIS 10K/ANSI150# Material Disc: Stainless steel 1.4408-CF8M
Pressure: up to DN200 16 bar above 10 bar Material seat: EPDM (bonded liner)
Temperature: -30°C +110°C Operation: Pneumatic double acting
Manufactured and assembled under Dutch supervision.
Body material Ductile Iron-GGG40- EN-GJS-400-15
Disc / Ball / Wedge Stainless-steel ASTM A351 CF8M-316
Seat EPDM
lloyds-register germanische-lloyds dnv abs
50
43
€341.00
Qty
minus-sm
plus-sm
65
46
€370.00
Qty
minus-sm
plus-sm
80
46
€412.00
Qty
minus-sm
plus-sm
100
52
€486.00
Qty
minus-sm
plus-sm
125
56
€568.00
Qty
minus-sm
plus-sm
150
56
€842.00
Qty
minus-sm
plus-sm
200
60
€1,218.00
Qty
minus-sm
plus-sm
250
68
€1,748.00
Qty
minus-sm
plus-sm
300
78
€2,323.00
Qty
minus-sm
plus-sm
350
78
€3,947.00
Qty
minus-sm
plus-sm
400
102
€4,741.00
Qty
minus-sm
plus-sm
450
114
€5,900.00
Qty
minus-sm
plus-sm
500
127
€11,583.00
Qty
minus-sm
plus-sm
600
154
€13,784.00
Qty
minus-sm
plus-sm
700
165
€336.00
Qty
minus-sm
plus-sm

1. Topflange
Actuation Flange according ISO 5211
2. Valvebody
Minimum GGG40 body
Available in several materials
3. Disc
Streamlined centric disc to reduce pressure loss and lower energy costs available in several materials
4. Liner
Vulcanised Lining bonded to the Body, no corrosion between valve body and liner for:
• Suitable for dry conditions
• Longer life time
• For end of line service
• Low torque
• No flange gaskets required
Available in several materials
5. Shaft
Centric One piece shaft system, 100% bi-directional tight shut off
6. Support bearing
Extra support bearing for lower valve torque
7. Bearing bush
S.S. PAP bearing bush vulcanised to the liner.
No use of a-rings on the shaft
8. Pin
Conical pin
9. Stop plug
To seal bottom side of the valve and to
guide stem/shaft
