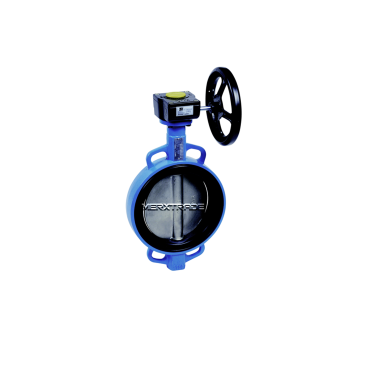

Butterfly valve wafertype gearbox TTV GGG50/Stainless.st/GGG50/CARBOXYLIC NBR PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
| Model: | Wafer type gearbox | Material body: | Duct.iron EN GJS 500-7 |
| Connection: | Between flanges PN10/16 | Material disc: | ASTM A351 CF8M up to DN100> see PDF |
| Pressure: | 16 Bars up to DN300 | Material disc: | DN125> Ductile iron epoxy coated |
| Temperature: | -10°C / +90°C | Material seat:: | Carboxylic NBR |
| Note: | Long neck for isolation | Operating: | Gearbox |
Datasheet (PDF)
| SKU | MXT-5231147 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | Carboxylated-NBR |
IMPA 752208 IMPA 752227 IMPA 752201 IMPA 752211 IMPA 752202 IMPA 752212 IMPA 752203 IMPA 752213 IMPA 752204 IMPA 752214 IMPA 752205 IMPA 752215 IMPA 752206 IMPA 752216 IMPA 752207 IMPA 752217 IMPA 752218 IMPA 752219 IMPA 752220 IMPA 752221 IMPA 752222 IMPA 752223 IMPA 752225 IMPA 756331 IMPA 756332 IMPA 756333 IMPA 756334 IMPA 756335 IMPA 756336 IMPA 756337 IMPA 756338 IMPA 756339 IMPA 756340 IMPA 756341 IMPA 756342 IMPA 756343 IMPA 756344 IMPA 754401 IMPA 754402 IMPA 754403 IMPA 754404 IMPA 754405 IMPA 754406 IMPA 754407 IMPA 754408 IMPA 754409 IMPA 754410 IMPA 754411 IMPA 754412 IMPA 754413 IMPA 754414
