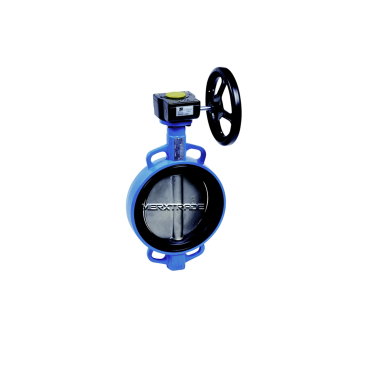

Butterfly valve wafertype gearbox TTV GGG50/GGG50/Stainless.st/NBR PN10/16
| Model: | Wafer + gearbox | Material body: | Ductile iron EN GJS 500-7 |
| Connection: | Between flanges PN10/16 | Material disc: | St.St. CF8M up to DN100 > see PDF |
| Pressure: | 16 Bars up to DN300 > see PDF | Material disc: | DN125> GGG50 black coated |
| Temperature: | -10°C / +90°C | Material seat: | NBR |
| Note: | Long neck for isolation | Operating: | Gearbox |
Not on stock, only on request: MXT-57231152450 / MXT-57231152500.
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-57231152 |
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
| Disc / Ball / Wedge | ASTM A351 CF8M |
| Seat | NBR |
