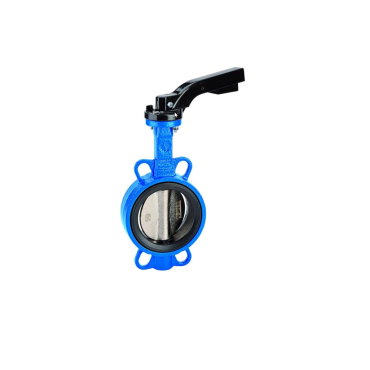

Butterfly valve wafer - GGG40 / Stainless steel / EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafer | Material body: | Ductile iron GGG40 EN GJS-400-15 |
| Connection: | Between flanges PN6,PN10/16,150# | Material disc: | St.St. AISI 316-A351 CF8M |
| Pressure: | 16 bar up to DN300, 10 bar > DN350 | Material seat: | EPDM |
| Temperature: | - 15°C to + 110°C and 130°C temporarily | Material lever: | Aluminium |
| Note: Gearbox recommended above DN200 |
Datasheet (PDF)
| SKU | MXT-58311123 |
|---|
| Body material | Ductile Iron-GGG40- EN-GJS-400-15 |
|---|---|
| Disc / Ball / Wedge | SS-ASTM-A351-CF8M-316 |
| Seat | EPDM |
