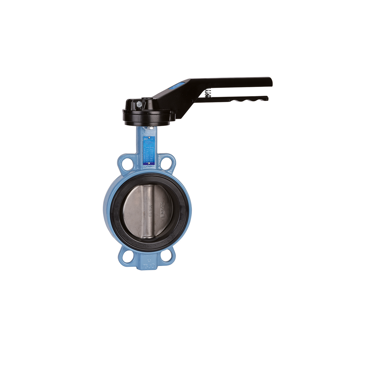

Butterfly valve wafertype lever GGG50/stainless steel/high temperature EPDM PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: |
High Temperature EPDM |
Material body: | Ductile iron EN GJS-500-7 |
| Connection: | Between flanges PN10/16 ANSI 150 | Material gate: | ASTM A351 CF8M |
| Pressure: | 16 bar up to DN300, 10 bar above | Material seat: | EPDM H.T. |
| Temperature: | -10°C / +130°C | Opperation: | Handle up to DN300 > bare shaft |
Not on stock, only on request: MXT-57211149450 / MXT-57211149500.
Datasheet (PDF)
| SKU | MXT-57211149 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | A351-CF8M-316 |
| Seat | EPDM-High-Temperature |
