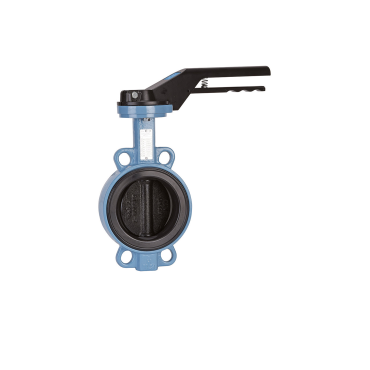

Butterfly valve TTV wafertype lever GGG50/GGG50/Stainless steel/NBR PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
| Model: | Wafer type | Material body: | Ductile iron EN GJS-500-7 rilsan coated |
| Connection: | PN10/16 ANSI 150# | Material disc: | DN32-100: ASTM A351 CF8M |
| Temperature: | -10°C / +90°C | Material Gate: | DN125 and up: EN GJS-500-7 |
| Pressure: | 16 bar> DN300 > check PDF | Material seat: | NBR |
| Approval: | BUREAU VERITAS | Operating: | Handle up to DN300 above bare shaft |
| Use: Shipbuilding, marine, industry, agriculture, heating systems, |
Datasheet (PDF)
| SKU | MXT-57211152 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | GGG50/ASTM-(A351-CF8M-316 up From DN32-DN100) |
| Seat | NBR |
