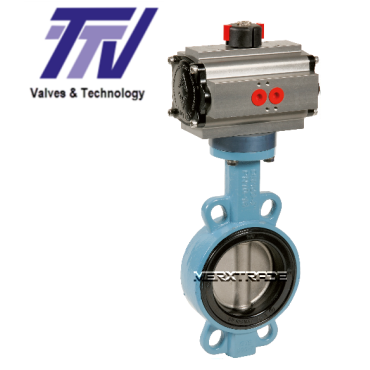

Butterfly valve wafertype pneumatic double acting excellence range GGG50/Stainless.st/EPDM PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafertype pneumatic | Material body: | Duct.iron EN GJS 500-7 rilsan coated |
| Connection: | Between flanges PN10/16 | Material gate: | ASTM A351 CF8M |
| Pressure: | 16 Bars up to DN200 > see PDF | Material seat: | EPDM |
| Temperature: | -10°C / +110°C | Operation: | Pneumatic double acting |
Datasheet (PDF)
| SKU | MXT-1153DA0000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | EPDM |
