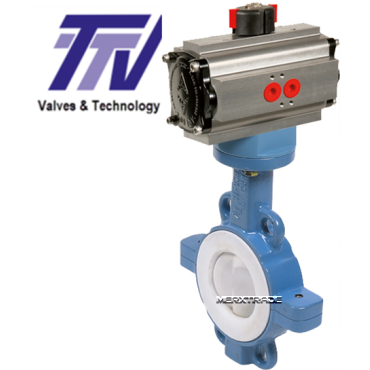

Butterfly valve wafertype pneumatic double acting excellence range GGG50/Stainless.st+Teflon/Teflon PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
| Model: | Wafertype 2 part | Material body: | Duct.iron EN GJS 500-7 rilsan coated |
| Connection: | Between flanges PN10/16 | Material gate: | ASTM A351 CF8M + Teflon |
| Pressure: | 16 Bars > DN150 see PDF | Material seat: | Teflon |
| Temperature: | -15°C / +200°C | Operation: | Pneumatic double acting |
Datasheet (PDF)
| SKU | MXT-1155DA0000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless steel ASTM A182 F316 |
| Seat | Teflon |
