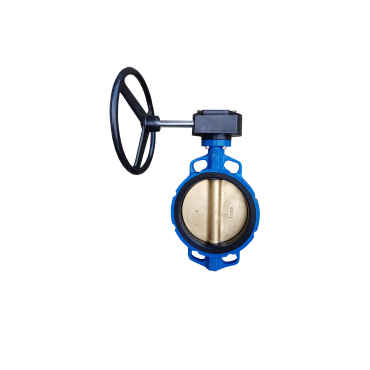

Butterfly wafer type gearbox Ductile iron / Stainless.steel316 / NBR
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
- Butterfly valve wafer type centric disc
- Size : DN 40 to 600 mm
- Ends : DN40 up to DN400 between flanges PN10/16/150# DN450 up to DN600 PN10
- Max Temperature : + 110°C
- Max Pressure: 16 Bars up to DN400 (10 bars over)
- Materials:
- Body: Ductile iron EN GJS-400-15/EN-JS1030
- Disc: Stainless steel
- Seat: NBR
- Operating: gearbox
- Applications:
industrial and maritime systems with pressures up to 16 bar (10 bar DN450 up to DN600)
cooling water systems, Cold and hot water
Datasheet (PDF)
| SKU | MXT-57213474 |
|---|
| Body material | Ductile Iron-GGG40- EN-GJS-400-15 |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | NBR |
