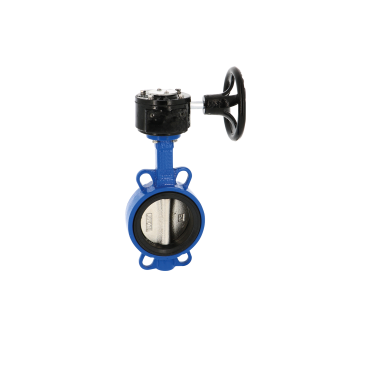

Butterfly valve wafer type gearbox GGG40/St.St.316/NBR
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
| Model: | Wafer | Material body: | Ductile iron GGG40 EN GJS-400-15 |
| Connection: | Between flanges | Material disc: | St.St.ASTM A351 CF8M |
| Pressure: | 16 bar up to DN300 | Material seat: | NBR |
| Pressure: | 10 bar 350 and over | Material gearbox: | Cast iron |
| Temperature: | - 10°C to + 80°C | Type Approval: | Lloyd's Register Approval |
| IMPA code at column : models, materials and sizes can be different and should be checked by the customer / visitor |
Datasheet (PDF)
| SKU | MXT-58131121 |
|---|
| Body material | Ductile Iron-GGG40- EN-GJS-400-15 |
|---|---|
| Disc / Ball / Wedge | SS-ASTM-A351-CF8M-316 |
| Seat | NBR |
