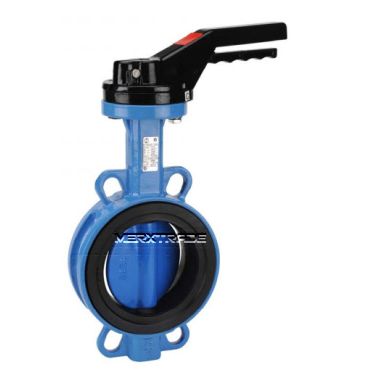

Butterfly wafertype Lever GGG40-GGG40 epoxy coated/EPDM

Butterfly valve wafer type centric disc
Size : DN 32 to 300 mm
Ends : Between flanges PN10/16 and Class 150 JIS 10K
Min Temperature : - 10°C  Max Temperature :+110 °C
Max Pressure: 16 Bars up to DN300 (10 bars over)
Materials: Ductile iron body EN GJS-400-15
                    Ductile iron disc epoxy painting coated
                    EPDM seat
Specifications :  Long neck for isolation
                               ISO 5211 mounting pad
                               Operating: Lever  (gearbox option)
                              9 positions lever up to DN150 and 12 positions lever from DN200 to 300,
                              Locking device in opened position
