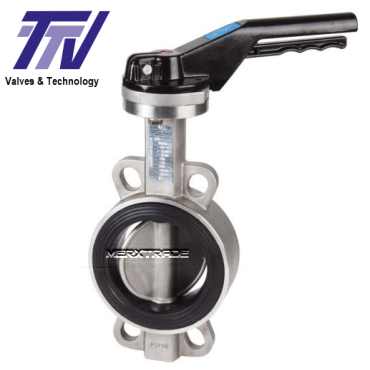

Butterfly valve wafertype lever excellence range stainless steel EPDM PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Butterfly valve wafer lever | Material body: | Stainless steel ASTM A351 CF8M 316 |
| Connection: | Between flanges PN10/16 and Class 150 (PN20)Â | Material disc: | Stainless steel ASTM A351 CF8M 316 |
| Pressure: | PN16 | Material seat: | EPDM |
| Temperature: | - 10°C / + 110°C | Material lever: | Aluminium ADC10 with epoxy painting 50µ thickness |
Specifications: Long neck for isolation, Full crossing stem, ISO 5211 mounting pad.
Use: Cold and hot water, sea water, alcohol, hydroxyd of soda, demineralized water, mercury, alcalins.
Datasheet (PDF)
| SKU | MXT-1184030000 |
|---|
| Body material | Stainless steel-ASTM-A351-CF8M-316 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M-316 |
| Seat | EPDM |
