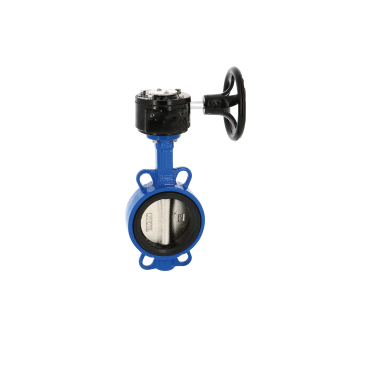

Butterfly valve wafertype gearbox GGG40/Duct.iron.nickel/EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafer between flanges | Material body: | Ductile iron GGG40 EN GJS-400-15 |
| Connection: | PN6,PN10/16,Class 150,JIS10K | Material disc: | Ductile iron nickel |
| Actuated: | Gearbox | Material seat: | EPDM |
| Pressure: | 16 bars up to DN300, 10 bars > | Temperature: | - 15°C to + 110°C |
Datasheet (PDF)
| SKU | MXT-58131125 |
|---|
| Body material | Ductile Iron-GGG40- EN-GJS-400-15 |
|---|---|
| Disc / Ball / Wedge | Ductileiron-EN-GJS-400-15-nickeled.coat |
| Seat | EPDM |
