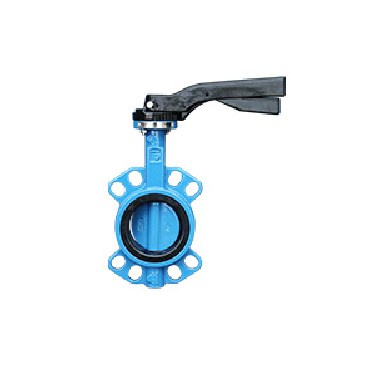

Butterfly valve wafer gearbox or lever SteelWCB216/SteelWCB216-Coating/EPDM PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafer Carbon steel | Material body: | Carbon steel A216 WCB |
| Connection: | Between flanges PN10/16/ANSI 150Lbs | Material Disc: | Carbon steel A216 WCB epoxy coating |
| Pressure: | 16 bar | Material seat: | EPDM |
| Temperature: | -15°C +130°C | Operation: | Gearbox or Lever |
| Rotork lever type AB-N IP67 cast iron with pipe steel handwheel. |
| Use: Maritime systems, seawater, ballast systems, engine rooms, lens systems, |
| SKU | MXT-57WCBE8000 |
|---|
| Body material | Steel ASTM A216 WCB |
|---|---|
| Disc / Ball / Wedge | Steel epoxy coated |
| Seat | EPDM |
