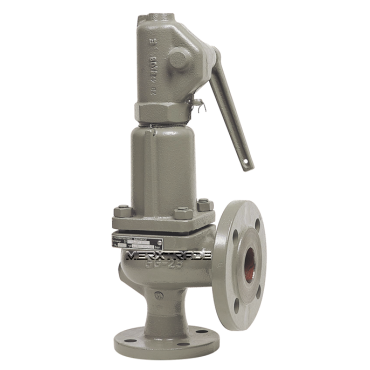

Safety valves flanged-cast.iron-Flanged PN16-For steam, gas & liquids
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | Safety angle | Material body: | Cast iron EN GLJ 250 |
| Connection: | Flanged PN10/16 | Material seat: | X39 Cr Mo 17-1 |
| Pressure work: | 16bar | Material disc: | X39 Cr Mo 17-1 |
| Test pressure: | 24bar | Material spring: | Alloy steel |
| Working temperature fluid: | -10 °C / +200 °C | Material stem: | X20 Cr13 |
Datasheet (PDF)
| SKU | MXT-63016V1000 |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | X39 Cr Mo 17-1 |
| Seat | X39 Cr Mo 17-1 |
