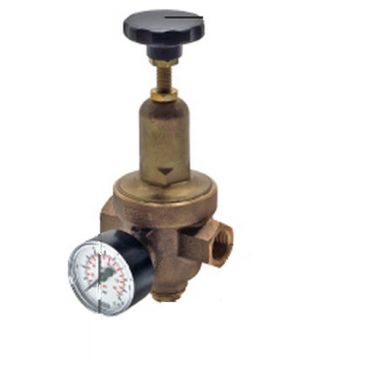

Pressure reducer-Bronze-thread-max.inlet.25bar-regulation.1.5-8bar [ Europe produced ]
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
Input pressure max. [bar]: 25 Pressure regulation area [bar]: 1.5 - 8
Max reduction ratio P1/P2: 10 : 1 .
Version: diaphragm pressure regulator, non-relieving (without secondary venting)
Temperature range: Max. 75°C .
Media: Compressed air, nitrogen, neutral non-inflammable gases, water and neutral, non-bonding liquids, no steam!
Datasheet (PDF)
| SKU | MXT-147255002 |
|---|
| Body material | Bronze CC499K |
|---|---|
| Disc / Ball / Wedge | 1".CW612N-1.1/4".EN-JL1040 |
| Seat | NBR / CR |
