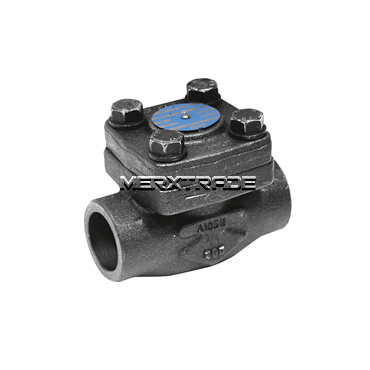

Check valve ball type spring forged steel thread NPT class 800lbs 136bar
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NPT
800.lbs
| Model: | Ball type with spring Trim 8 |
Material body: | Steel ASTM A105 N |
| Connection: | Thread NPT ANSI B1.20.1 | Material ball: | ASTM A276 type 410 STELLITE GR.6’ |
| Pressure: | 136bar ( see graph) | Material gasket: | AISI 316 + graphite spiral wound |
| Temperature: | - 29°C to + 425°C | Material spring: | AISI 302 |
Datasheet (PDF)
| SKU | MXT-3190020001 |
|---|
| Body material | Forged.Carbon.Steel-ASTM-A105N |
|---|---|
| Disc / Ball / Wedge | ASTM-A276 type 410 |
| Seat | SS-ASTM-A276-type.410 + Stellite.GR.6 |
