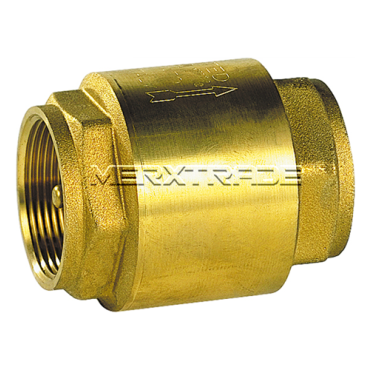

Check valve spring female thread BSPP - brass / polymer
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
NBR
| Model: | Straight with spring | Material body: | Brass CW 617N |
| Connection: | Female thread BSPP | Material disc | Polymer |
| Max pressure: | 12 bar | Material spring: | SS AISI 302 |
| Temperature: | - 20°C +100°C | Material gasket: | NBR |
Datasheet (PDF)
| SKU | MXT-6630371000 |
|---|
| Body material | Brass-CW617N |
|---|---|
| Disc / Ball / Wedge | Polymer |
| Seat | NBR |
