Check valve Lift type with spring flanged Stainless.steel PN16/40

Skip to the end of the images gallery

Skip to the beginning of the images gallery

download datasheet

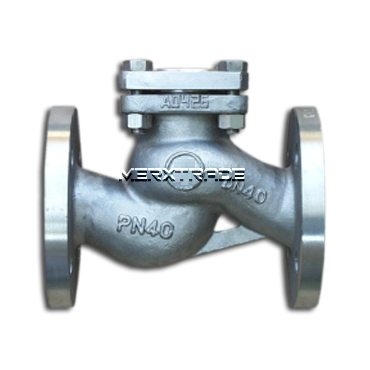

Check valve Lift type with spring flanged Stainless.steel PN16/40

Model:	Lift type with spring	Material body:	Stainless.steel 1.4408
Connection:	Flanges PN16/40 see PDF	Material seat:	Stainless.steel 1.4408
Pressure:	PN16/40 (check data sheet)	Material plug/disc:	Stainless.steel 1.4571
Temperature:	-60°C/+300°C.	Material cover gasket:	Graphit

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	MXT-9700220000
Body material	StainlessSteel-1.4408-316.
Disc / Ball / Wedge	Stainless.steel
Seat	Metal

Grouped product items
SKU	Product Name	DN	Length	€ / st	Qty
MXT-9700220015	Check valve Lift type+spring flanged St.St. PN16/40 - DN15	15	130	€208.95	- +
MXT-9700220020	Check valve Lift type+spring flanged St.St. PN16/40 - DN20	20	150	€282.98	- +
MXT-9700220025	Check valve Lift type+spring flanged St.St. PN16/40 - DN25	25	160	€287.70	- +
MXT-9700220032	Check valve Lift type+spring flanged St.St. PN16/40 - DN32	32	180	€417.90	- +
MXT-9700220040	Check valve Lift type+spring flanged St.St. PN16/40 - DN40	40	200	€522.90	- +
MXT-9700220050	Check valve Lift type+spring flanged St.St. PN16/40 - DN50	50	230	€604.80	- +
MXT-9700220064	Check valve Lift type+spring flanged St.St. PN16 - DN65	65	290	€870.45	- +
MXT-9700220065	Check valve Lift type+spring flanged St.St. PN40 - DN65	65	290	€870.45	- +
MXT-9700220079	Check valve Lift type+spring flanged St.St. PN16 - DN80	80	310	€1,128.75	- +
MXT-9700220080	Check valve Lift type+spring flanged St.St. PN40 - DN80	80	310	€1,128.75	- +
MXT-9700220099	Check valve Lift type+spring flanged St.St. PN16 - DN100	100	350	€1,845.90	- +
MXT-9700220100	Check valve Lift type+spring flanged St.St. PN40 - DN100	100	350	€1,845.90	- +
MXT-9700220124	Check valve Lift type+spring flanged St.St. PN16 - DN125	125	400	€2,518.95	- +
MXT-9700220125	Check valve Lift type+spring flanged St.St. PN40 - DN125	125	400	€2,518.95	- +
MXT-9700220149	Check valve Lift type+spring flanged St.St. PN16 - DN150	150	480	€3,753.75	- +
MXT-9700220150	Check valve Lift type+spring flanged St.St. PN40 - DN150	150	480	€3,753.75	- +
MXT-9700220199	Check valve Lift type+spring flanged St.St. PN16 - DN200	200	600	€5,542.95	- +
MXT-9700220200	Check valve Lift type+spring flanged St.St. PN40 - DN200	200	600	€5,542.95	- +
