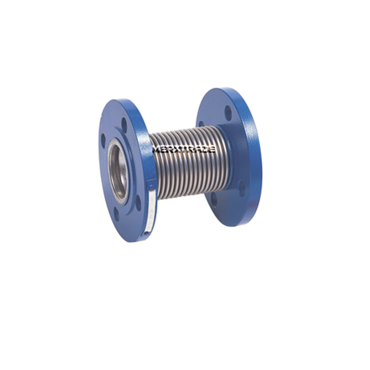

Compensator stainless-steel steel-flange
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
Compensator stainless-steel steel-flange
Stainless steel bellow with internal liner
Steel flanges ISO PN16 R.
Axial movement
For common fluids
Min Temperature Ts : - 20°C
Max Temperature Ts :+ 300°C
Max Pressure Ps : 16 bars ( see graph in data PDF )
Axial movement only
Flange drill PN16
Fabrication according to ISO 9001 : 2008
DIRECTIVE 97/23/CE : CE N° 0036 Risk category II Module A1
Respect the flow direction indicated by the arrow
Datasheet (PDF)
| SKU | MXT-55401521 |
|---|
| Material bellow | Stainless steel |
|---|---|
| Body material | Stainless.steel 321 |
| Disc / Ball / Wedge | Steel St. 37.2 |
