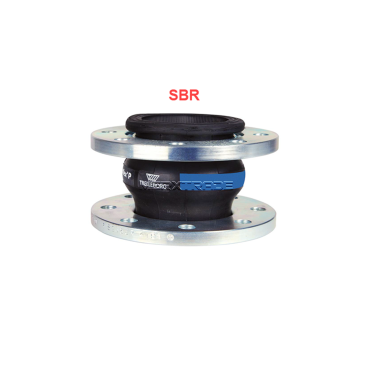

Compensator flanged steel zinc-bellow SBR Abrasion L=130mm PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| Model: | Rotating flanges rubber bellow | Material bellow: | SBR Abrasion Styrene Butadiene Rubber |
| Connection: | Flanges PN10/16 up to DN150 > PN10 | Material flanges: | Zinc plated steel |
| Pressure: | 16 bars | Serie: | Teguflex® |
| Temperature: | - 35°C to + 90°C | Brand: | Trelleborg |
| Abrasive materials, wearing material such as sludge suspended stones, calcium | |||
| Not advisable for hydrocarbons and greasy product | |||
| SKU | MXT-490SBR0000 |
|---|
| Material bellow | SBR (Styrene Butadiene) |
|---|---|
| Body material | SBR Styrene Butadiene Rubber |
| Disc / Ball / Wedge | Steel Zinc |
Expansion joints, also called expansion joints, are suitable for absorbing movements in systems.
Movements such as thermal expansion, contraction, and vibrations are accommodated.
Expansion joints with bellows are made of rubber, PTFE, metal, or braided hose.
Connections are available with flanges, threads, weld-on, and clamps.
Flanges are available in DIN, ANSI, and SAE versions.
The bellows can be made of NBR, PTFE, EPDM, Viton, FKM, CSM, SBR, and stainless steel.
The various types of bellows materials are suitable for:
Hot water, cooling water with salt solutions, chlorine solutions, esters and ketones, drinking water, steam and hot air, cooling/heating water, alkalis, mineral oil, vegetable oil, oils, aerosols, propane and butane gas, acids, oil-containing compressed air aerosols, hydraulic abrasives, suspended stones, mud, calcium, food and beverages including greases and oils, and chemical fluids that are highly aggressive at high temperatures.
Various brands include:
Trelleborg, Teguflex, Stenflex, Willbrandt, Belman, Elaflex.
Various models include:
EVR, EVR-CR, Type 50, Type 46, Type 49, Type 51, Type 53, Type 53, Type 55, Type 61, AS-1, A-1. R-1, VS-1
