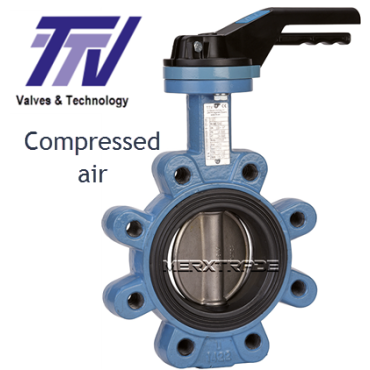

Butterfly valve lug TTV compressed air GGG50 / Stainless steel / Vulcanized NBR PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
DIN
| Model: | Concentric butterfly valve lug |
Material body: | iron EN GJS-500-7 |
| Connection: | Lug PN10/16 | Material gate: | SS CF8M until DN100, above see PDF |
| Pressure: | 16 bar | Material seat: | NBR |
| Temperature: | -10°C +90°C |
Datasheet (PDF)
| SKU | MXT-571162V000 |
|---|
| Model | Straight |
|---|---|
| Body material | Ductile iron |
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | NBR |
