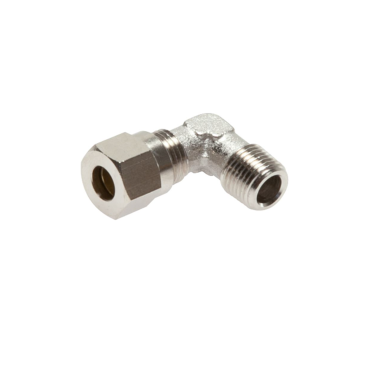

Screwed Angle male cutting ring coupling brass-nickel LL & L

BSP
Model: Angle male thread Material body: Brass nickel-plated
Model series: light model series LL & L Material ring: Brass
Connection1: Pipe connect Including: Union nut
Connection2: Male thread BSPT (R) Including: Cutting ring
Temperature: -60°C +300°C Pressure*: 4LL-6LL-8LL=100 bar
Temperature:: with swivel -20°C +80°C Pressure*: 10L=115bar 12L=75bar 15L=70bar 18L=65bar
Operating pressure based with hard copper tube*
When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65)
SKU MXT-4392MN000
Body material Brass-nickel-plated
4mm
€2.18
Qty
minus-sm
plus-sm
6mm
€2.34
Qty
minus-sm
plus-sm
6mm
€2.49
Qty
minus-sm
plus-sm
8mm
€2.84
Qty
minus-sm
plus-sm
8mm
€2.89
Qty
minus-sm
plus-sm
8mm
€3.41
Qty
minus-sm
plus-sm
10mm
€4.25
Qty
minus-sm
plus-sm
10mm
€4.28
Qty
minus-sm
plus-sm
12mm
€5.83
Qty
minus-sm
plus-sm
12mm
€6.54
Qty
minus-sm
plus-sm
15mm
€9.03
Qty
minus-sm
plus-sm
18mm
€13.78
Qty
minus-sm
plus-sm
