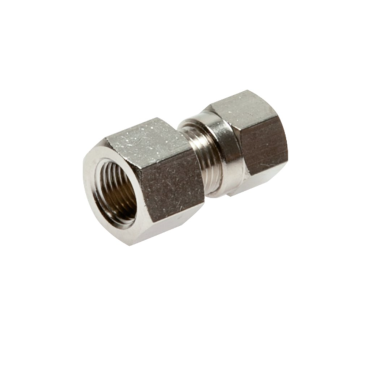

Screwed female cutting ring coupling brass-nickel LL & L
Screwed female cutting ring coupling brass-nickel LL & L
| Model: |
Female thread |
Material body: |
Brass nickel-plated |
| Model series: |
light model series LL & L |
Material ring: |
Brass |
| Connection1: |
Pipe connect |
Including: |
Union nut |
| Connection2: |
Female thread BSPP (G) |
Including: |
Cutting ring |
| Temperature: |
-60°C +300°C |
Pressure*: |
4LL-6LL-8LL=100 bar |
| Temperature:: |
with swivel -20°C +80°C |
Pressure*: |
10L=115bar 12L=75bar 15L=70bar 18L=65bar |
| Operating pressure based with hard copper tube* |
| When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65) |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-4393MN000 |
| Body material |
Brass-nickel-plated |
