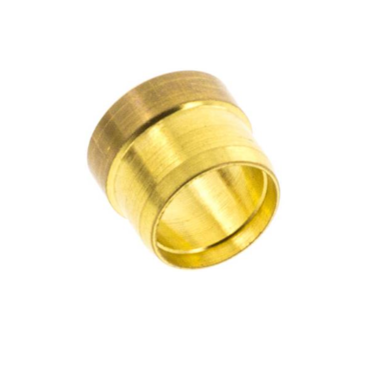

Cutting ring brass LL & L

Model: cutting ring Material body: Brass
Model series: light model series LL & L Pressure*: 4LL-6LL-8LL=100 bar
    Pressure*: 10L=115bar 12L=75bar 15L=70bar 18L=65bar
Operating pressure based with hard copper tube*
When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65)

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-4395MN000
Body material Brass
Grouped product items
SKU Product Name DN € / st Qty
MXT-4395MN001 Cutting ring brass - 4LL 4mm
€0.28
- +
MXT-4395MN002 Cutting ring brass - 6LL 6mm
€0.35
- +
MXT-4395MN003 Cutting ring brass - 8LL 8mm
€0.38
- +
MXT-4395MN004 Cutting ring brass - 10L 10mm
€0.60
- +
MXT-4395MN005 Cutting ring brass - 12L 12mm
€0.63
- +
MXT-4395MN006 Cutting ring brass - 15L 15mm
€0.63
- +
MXT-4395MN007 Cutting ring brass - 18L 18mm
€0.85
- +
