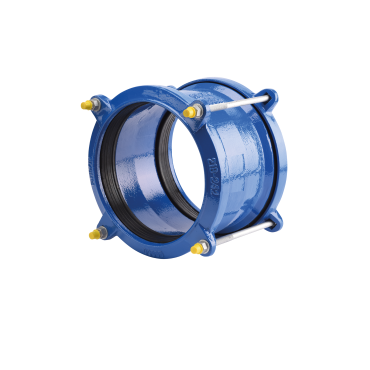

Dresser type coupling Nodulair cast iron/EPDM PN10/16

Model: Dresser pipe coupling Material body: Ductile iron EN-GJS-500
Connection: Clamping Material bolts: Steel quality 8.8. coated.
Pressure: 16 bar up to DN200 > 10 bar Material seal: EPDM
Temperature: 0°C +60°C Coating: Epoxy blue 250µ thickness

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: DRES3305000
Body material Ductile iron GGG50- EN-GJS-500-7
Seat EPDM
Grouped product items
SKU Product Name DN Length Ø D € / st Qty
DRES3305050 Dresser type coupling Nodulair cast iron/EPDM PN16 DN50 58-74 50 200 58 - 74
€46.48
- +
DRES3305065 Dresser type coupling Nodulair cast iron/EPDM PN16 DN65 68-84 65 200 68 - 84
€52.62
- +
DRES3305080 Dresser type coupling Nodulair cast iron/EPDM PN16 DN80 84-105 80 200 84 - 105
€76.24
- +
DRES3305100 Dresser type coupling Nodulair cast iron/EPDM PN16 DN100 109-133 100 210 109 - 133
€88.34
- +
DRES3305125 Dresser type coupling Nodulair cast iron/EPDM PN16 DN125 133-157 125 210 133 - 157
€105.04
- +
DRES3305150 Dresser type coupling Nodulair cast iron/EPDM PN16 DN150 157-183 150 230 157 - 183
€135.96
- +
DRES3305151 Dresser type coupling Nodulair cast iron/EPDM PN16 DN150 177-201 150 230 177 - 201
€139.72
- +
DRES3305200 Dresser type coupling Nodulair cast iron/EPDM PN16 DN200 194-215 200 230 194 - 215
€142.12
- +
DRES3305201 Dresser type coupling Nodulair cast iron/EPDM PN16 DN200 218-242 200 250 218 - 242
€193.66
- +
DRES3305250 Dresser type coupling Nodulair cast iron/EPDM PN10 DN250 242-268 250 250 242 - 268
€244.70
- +
DRES3305251 Dresser type coupling Nodulair cast iron/EPDM PN10 DN250 266-291 250 250 266 - 291
€255.90
- +
DRES3305252 Dresser type coupling Nodulair cast iron/EPDM PN10 DN250 280-305 250 275 280 - 305
€274.62
- +
DRES3305300 Dresser type coupling Nodulair cast iron/EPDM PN10 DN300 302-327 300 275 302 - 327
€289.78
- +
DRES3305301 Dresser type coupling Nodulair cast iron/EPDM PN10 DN300 324-350 300 290 324 - 350
€350.08
- +
DRES3305350 Dresser type coupling Nodulair cast iron/EPDM PN10 DN350 351-378 350 290 351 - 378
€448.14
- +
DRES3305351 Dresser type coupling Nodulair cast iron/EPDM PN10 DN350 386-410 350 290 386 - 410
€458.64
- +
DRES3305400 Dresser type coupling Nodulair cast iron/EPDM PN10 DN400 410-436 400 290 410 - 436
€486.22
- +
DRES3305401 Dresser type coupling Nodulair cast iron/EPDM PN10 DN400 436-462 400 290 436 - 462
€586.90
- +

Water supply universal wide tolerance dresser coupling ductile iron for water supply, drinking water, watering and distribution
networks.
SPECIFICATIONS :
Ductile iron body

EPDM gasket

Anti-corrosion Geomet 500 grade B coated bolting

Epoxy painting blue color RAL 5017, 250μ thickness

USE:

Water supply and distribution networks

Suitable for rigid pipes, such as cast iron, carbon steel, PVC, asbestos cement

Not suitable for PE pipes

Min and max Temperature Ts : + 0°C to + 60°C

Max Pressure Ps : 16 bars up to DN200, 10 bars over

STANDARDS :
Manufacturer certified ISO 9001 : 2015

Directive 2014/68/EU : Products excluded from directive ( Article 1, § 2.b )

Construction according to EN 14525

French water agreement A.C.S. N° 18 ACC LY 203 from DN50 to DN315

English water agreement WRAS

Pressure tests according to ISO 5208

Fittings for PVC pipe according to NF EN 12842

Bolting with anti-corrosion coating according to NF EN ISO 9227 + NFA05-109
Coating according to RoHS 2002/95/CE
