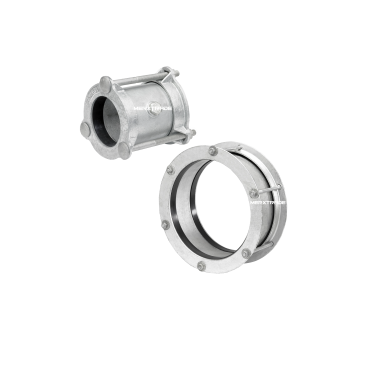

Dresser type pipe coupling - galvanized steel / NBR
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NBR
| Model: | Dresser type pipe coupling |
| Material body: | High quality rolled steel to BS4360:1986 Grade 43A. |
| Surface treatment: | Hot dipped galvanized |
| Material bolts: | Steel BS970: Part1:1983 Grade 070 hot dipped galvanized |
| Material gasket sleeve: | NBR rubber |
| The flexibility of the coupling easily absorbs an axial expansion or contraction of max. 10 mm. |
| Maximum deflection of 6°. |
| The couplings and flange adaptors can absorb vibrations. |
| Long radius curves or slight bends can be laid without special bends |
| Accepts some disallignment in straight pipes. |
| Easy installation, all you need is a spanner. |
| A (removable) locating plug can be installed on request. |
Datasheet (PDF)
| SKU | MXT-9922431N |
|---|
| Body material | Steel.Zinc |
|---|---|
| Seat | NBR |
| IMPA 735001 | IMPA 734941 | IMPA 734961 | IMPA 734981 | IMPA 735021 | IMPA 735041 |
| IMPA 735002 | IMPA 734942 | IMPA 734962 | IMPA 734982 | IMPA 735022 | IMPA 735042 |
| IMPA 735003 | IMPA 734943 | IMPA 734963 | IMPA 734983 | IMPA 735023 | IMPA 735043 |
| IMPA 735004 | IMPA 734944 | IMPA 734964 | IMPA 734984 | IMPA 735024 | IMPA 735044 |
| IMPA 735005 | IMPA 734945 | IMPA 734965 | IMPA 734985 | IMPA 735025 | IMPA 735045 |
| IMPA 735006 | IMPA 734946 | IMPA 734966 | IMPA 734986 | IMPA 735026 | IMPA 735046 |
| IMPA 735007 | IMPA 734947 | IMPA 734967 | IMPA 734987 | IMPA 735027 | IMPA 735047 |
| IMPA 735008 | IMPA 734948 | IMPA 734968 | IMPA 734988 | IMPA 735028 | IMPA 735048 |
| IMPA 735009 | IMPA 734949 | IMPA 734969 | IMPA 734989 | IMPA 735029 | IMPA 735049 |
| IMPA 735010 | IMPA 734950 | IMPA 734970 | IMPA 734990 | IMPA 735030 | IMPA 735050 |
| IMPA 735011 | IMPA 734951 | IMPA 734971 | IMPA 734991 | IMPA 735036 | IMPA 735051 |
| IMPA 735012 | IMPA 734952 | IMPA 734972 | IMPA 734992 | IMPA 735052 | |
| IMPA 735013 | IMPA 734953 | IMPA 734973 | IMPA 734993 | IMPA 735053 | |
| IMPA 735014 | IMPA 734954 | IMPA 734974 | IMPA 734994 | IMPA 735054 | |
| IMPA 735015 | IMPA 735055 | ||||
| IMPA 735056 | |||||
| IMPA 735057 | |||||
| IMPA 735058 | |||||
| IMPA 735059 | |||||
| IMPA 735060 | |||||
| IMPA 735061 | |||||
| IMPA 735062 | |||||
| IMPA 735063 | |||||
| IMPA 735064 | |||||
