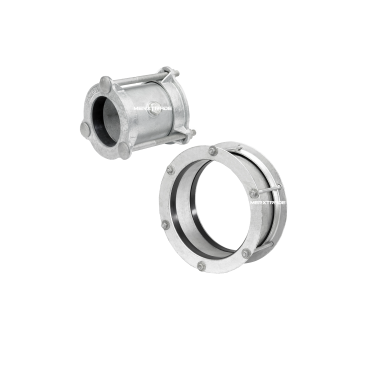

Dresser type pipe couplings steel zinc EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Dresser type pipe coupling |
| Material body: | High quality rolled steel to BS4360:1986 Grade 43A. |
| Surface treatment: | Hot dipped galvanized |
| Material bolts: | Steel BS970: Part1:1983 Grade 070 hot dipped galvanized |
| Material gasket sleeve: | EPDM rubber |
| The flexibility of the coupling easily absorbs an axial expansion or contraction of max. 10 mm. |
| Maximum deflection of 6°. |
| The couplings and flange adaptors can absorb vibrations. |
| Long radius curves or slight bends can be laid without special bends |
| Accepts some disallignment in straight pipes. |
| Easy installation, all you need is a spanner. |
| A (removable) locating plug can be installed on request. |
Datasheet (PDF)
| SKU | MXT-9922431E |
|---|
| Body material | Steel.Zinc |
|---|---|
| Seat | EPDM |
