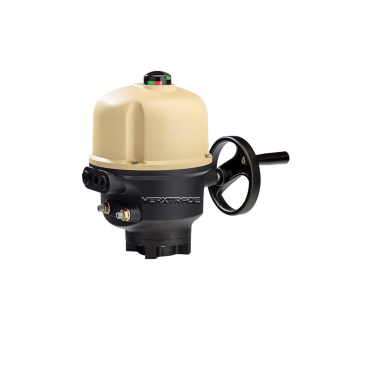

Electric actuator Bernard quarter turn AQ Switch-24Volt DC IP68
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
On-Off
| Model: | AQS Quarter turn | Material body: | Aluminium |
| Connection: | ISO 5211 pad, star | Type: | On-off class A to EN 15714-2 |
| Weatherproofness: | IP68 | Protection: | C4 acc to ISO 12944 |
| Room temp: | -20°C / 60°C | Override: | Handwheel manual override |
| Power: | 24 volt DC | Brand: | Bernard |
| S4 duty service: 30% of time, up to 360 start/h at peak |
| Compact type - 90º operating angle |
| 2 SPDT adjustable limit switches - 2 dry auxiliary limit switches - 3D position indicator |
| Resistance heater - Torque limiter from AQ-25 to AQ-50 |
| Electrical connection: gland packing M20 (not included). |
| SKU | MXT-AQ0228400 |
|---|
| Body material | Aluminium |
|---|
