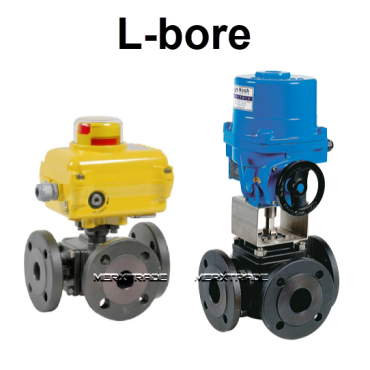

Electric 3-way L bore ball valve flanged steel 230V AC PN16

Model: 3-way Material body: Carbonsteel A216WCB
Connection: Flanged PN16 Material ball: Stainless st 1.4308
Pressure: 16bar check tech data PDF Material seat: PTFE+15% graphite
Temperature: -20°C 150°C for the ball valve Operation: Electric on/off 230V AC
Electrical Actuator IP67
Casing + lid:     Aluminium Motor protection:   Thermal switch
Gear box: Treaded steel pinions Limit switches: 2 adjustable switches
Anti-condensation: Integrated Auxiliary switches: 2 adjustable dry switches
Supply voltage: 230volt AC Manual control: By handwheel



The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-783L002000
Body material Steel ASTM A216 WCB.
Disc / Ball / Wedge Stainless.steel
Seat PTFE with 15% graphite
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-783L002025 Electric 3-way L ball valve flanged steel 230V AC SA05 PN16-DN25 25 185
€1,155.90
- +
MXT-783L002032 Electric 3-way L ball valve flanged steel 230V AC SA05 PN16-DN32 32 195
€1,351.10
- +
MXT-783L002040 Electric 3-way L ball valve flanged steel 230V AC NA06 PN16-DN40 40 232
€1,751.93
- +
MXT-783L002050 Electric 3-way L ball valve flanged steel 230V AC NA09 PN16-DN50 50 253
€2,242.42
- +
MXT-783L002065 Electric 3-way L ball valve flanged steel 230V AC NA15 PN16-DN65 65 270
€2,955.53
- +
MXT-783L002080 Electric 3-way L ball valve flanged steel 230V AC NA28 PN16-DN80 80 292
€3,558.87
- +
MXT-783L002100 Electric 3-way L ball valve flanged steel 230V AC NA28 PN16-DN100 100 360
€6,269.23
- +
MXT-783L002125 Electric 3-way L ball valve flanged steel 230V AC NA60 PN16-DN125 125 416
€8,463.35
- +
MXT-783L002150 Electric 3-way L ball valve flanged steel 230V AC NA60 PN16-DN150 150 473
€11,436.72
- +
