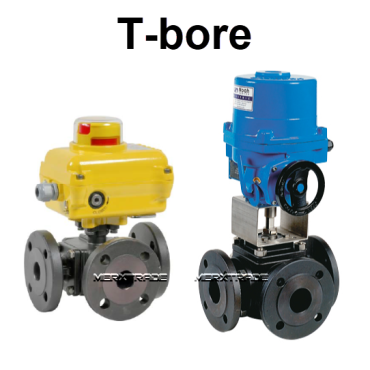

Electric 3-way T bore ball valve flanged steel 230V AC PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 3-way T -bore | Material body: | Carbonsteel A216WCB |
| Connection: | Flanged PN16 | Material ball: | Stainless st 1.4308 |
| Pressure: | 16bar check tech data PDF | Material seat: | PTFE+15% graphite |
| Temperature: | -20°C 150°C for the ball valve | Operation: | Electric on/off 230V AC |
| Electrical Actuator IP67 |
| Casing + lid: | Aluminium | Motor protection: | Thermal switch |
| Gear box: | Treaded steel pinions | Limit switches: | 2 adjustable switches |
| Anti-condensation: | Integrated | Auxiliary switches: | 2 adjustable dry switches |
| Supply voltage: | 230volt AC | Manual control: | By handwheel |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
| SKU | MXT-784T002000 |
|---|
| Body material | Steel ASTM A216 WCB. |
|---|---|
| Disc / Ball / Wedge | Stainless.steel |
| Seat | PTFE with 15% graphite |
