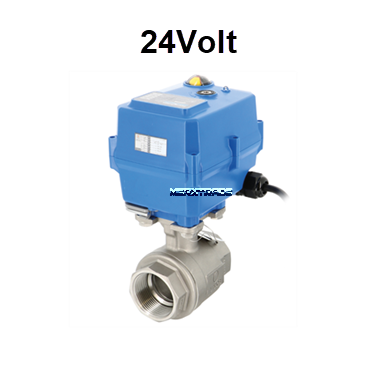

Electric actuated ball valve Stainless.steel thread 24VAC/DC IP67

Model: 2-piece Material body: Stainless.steel 1.4408
Connection: Thread female BSPP ISO 228-1 Material ball: Stainless.steel 1.4408
Pressure: 63bar > check tech data PDF Material seat: PTFE+15% GF
Temperature: -10°C 180°C for the ball valve Operation: Electric on/off 24V AC/DC
Electrical Actuator IP67
Casing + lid:     Plastic (ABS                      Motor protection:   Thermal switch
Gear box: Treaded steel pinions Limit switches: 2 adjustable switches
Anti-condensation: Integrated Auxiliary switches: 2 adjustable dry switches
Supply voltage: 24volt AC/DC Manual control: By key (Allen wrench)

Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7150021000
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge StainlessSteel-1.4408-316
Seat PTFE with 15% graphite
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7150021001 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR02N 1/2" 1/2" 57
€389.36
- +
MXT-7150021002 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR02N 3/4" 3/4" 71
€406.77
- +
MXT-7150021003 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR02N 1" 1" 83
€422.18
- +
MXT-7150021004 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR02N 1.1/4" 1.1/4" 91
€445.54
- +
MXT-7150021005 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR05N 1.1/2" 1.1/2" 104
€561.86
- +
MXT-7150021006 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR05N 2" 2" 123
€654.15
- +
MXT-7150021007 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR11N 2.1/2" 2.1/2" 155
€1,043.70
- +
MXT-7150021008 Electric actuated ball valve St.St.CF8M thread 24VAC/DC TCR11N 3" 3" 182
€1,219.89
- +
