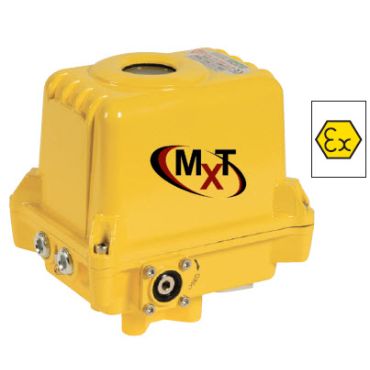

Electric actuator-SA005X-230V=AC-24V=AC/DC-IP67- ATEX-Torque 50Nm

Specifications:
Comply with EN 15714-2 standard
Compact type - 90° operating angle
Epoxy coated aluminium enclosure
Temperature range: -20°C/+55°C.
Standard equipment:
2 adjustable limit switches + 2 auxiliary dry switches
Thermal protection  and anti-condensation heater
Steel reducing box
Position indicator with led
Excluding: gland pack Atex M20 x 1,5
ISO 5211 pad, star connection.

Type: SA005 ATEX Ex II 2 G Eex d IIB T4, areas 1 & 2    IP67  230V=AC  24V=AC/DC
Torque (Nm): 50
Operating time 90° (s): 17    Note: colors may be blue or yellow, depending on the stock
Electrical power (W): 6
ISO 5211: F03/05/07
Insert size: 14
Resistance heater
Manual override by key (included)

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-SA5X7063130000
Body material Aluminium+Epoxy polyester coating
Grouped product items
SKU Product Name DN IMPA € / st Qty
MXT-SA5X7063130002 MXT-Electric-Actuator-SA005-X-24V-AC/DC-IP67- ATEX-Torque 50Nm F03/05/07-14 IMPA 754255
€815.85
- +
MXT-SA5X7063130001 MXT-Electric-Actuator-SA005-X-230V-AC-IP67- ATEX-Torque 50Nm F03/05/07-14 IMPA 754254
€815.85
- +
