Electric butterfly valve wafer 230Volt-AC GGG50/Stainless steel/EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
On-Off
| Model: | Wafer lower torque | Material body: | Ductile iron GGG50 GJS-500-7 |
| Connection: | Between flanges PN10/16 ANSI 150# | Material disc: | Stainless steel ASTM A351 CF8M |
| Pressure: | 10 bar check tech data PDF | Material seat: | EPDM |
| Temperature: | -10°C +110°C for the valve | Operation: | Electric open/close 230Volt AC |

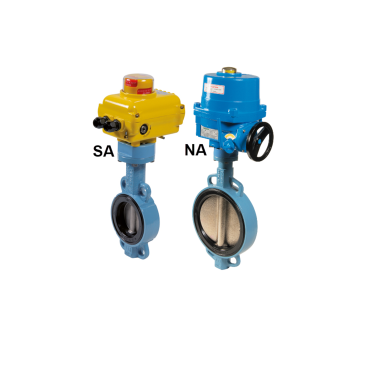

| Electrical Actuator model SA & NA |
| Casing + lid: | Aluminium alloy | Motor protection: | Thermal switch |
| Gear box: | Treaded steel pinions | Limit switches: | 2 adjustable switches |
| Anti-condensation: | Integrated | Auxiliary switches: | 2 adjustable dry switches |
| Supply voltage: | 230volt AC | Manual control: | SA type by key (Allen wrench) |
| IP code: | IP 67 | Manual control: | NA type by handwheel |
| SKU | 1153LT2300000 |
|---|
| Body material | Ductileiron-GGG50- EN-GJS-500-7 |
|---|---|
| Disc / Ball / Wedge | Stainless-steel ASTM A351 CF8M |
| Seat | EPDM |
