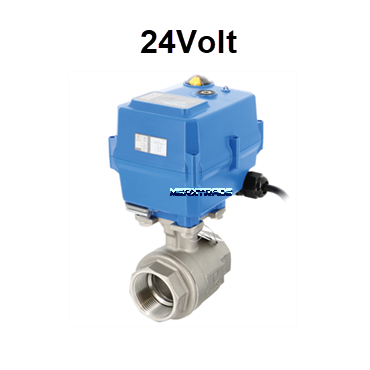

Electric quick-acting ball valve Stainless.steel thread 24VAC/DC IP67
Electric quick-acting ball valve Stainless.steel thread 24VAC/DC IP67
| Model: |
2-piece Quick-Acting |
Material body: |
Stainless.steel 1.4408 |
| Connection: |
Thread female BSPP ISO 228-1 |
Material ball: |
Stainless.steel 1.4408 |
| Pressure: |
63bar > check tech data PDF |
Material seat: |
PTFE+15% GF |
| Temperature: |
-10°C 180°C for the ball valve |
Operation: |
Electric on/off 24V AC/DC |
| Casing + lid: |
Plastic (ABS |
Motor protection: |
Thermal switch |
| Gear box: |
Treaded steel pinions |
Limit switches: |
2 adjustable switches |
| Anti-condensation: |
Integrated |
Auxiliary switches: |
2 adjustable dry switches |
| Supply voltage: |
24Volt AC/DC quick-acting |
Manual control: |
By key (Allen wrench) |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-7150041000 |
| Body material |
StainlessSteel-1.4408-316. |
| Disc / Ball / Wedge |
StainlessSteel-1.4408-316 |
| Seat |
PTFE with 15% graphite |
