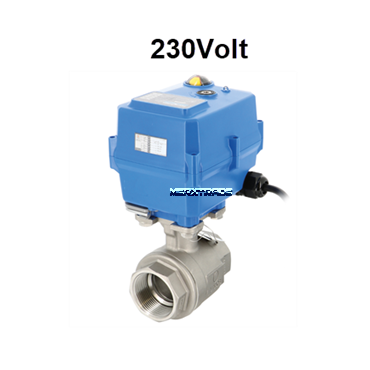

Electric timer execution ball valve Stainless.steel thread 230VAC/DC IP67
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | 2-piece Timer acting | Material body: | Stainless.steel 1.4408 |
| Connection: | Thread female BSPP ISO 228-1 | Material ball: | Stainless.steel 1.4408 |
| Pressure: | 63bar > check tech data PDF | Material seat: | PTFE+15% GF |
| Temperature: | -10°C 180°C for the ball valve | Operation: | Electric on/off 230V AC/DC |
| Electrical Actuator IP67 |
| Casing + lid: | Plastic (ABS | Motor protection: | Thermal switch |
| Gear box: | Treaded steel pinions | Limit switches: | 2 adjustable switches |
| Anti-condensation: | Integrated | Auxiliary switches: | 2 adjustable dry switches |
| Supply voltage: | 230Volt AC/DC With Timer | Manual control: | By key (Allen wrench) |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
Datasheet (PDF)
| SKU | MXT-7150071000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE with 15% graphite |
