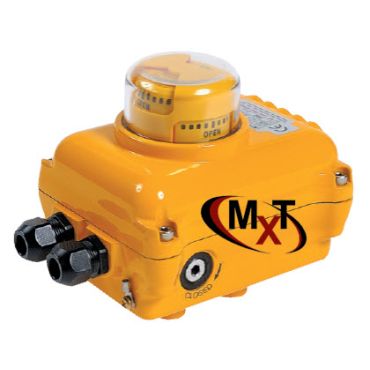

Electric actuator-SA005-230V=AC-24V=AC/DC-12V=DC-IP67 Torque 50Nm

Specifications:
Comply with EN 15714-2 standard
Compact type - 90° operating angle
Epoxy coated aluminium enclosure
Room temperature range: -20°C/+70°C.
Standard equipment:
2 adjustable limit switches + 2 auxiliary limit switches
Thermal protection  and anti-condensation heater
Steel reducing box
Position indicator with led
Supplied electrical connection: gland pack M20 x 1,5
ISO 5211 pad, star connection.

Type: SA005     IP67  230V=AC  -  24V=AC/DC  -  12V=DC
Torque (Nm): 50
Operating time 90° (s): 17    Note: colors may be blue or yellow, depending on the stock
Electrical power (W): 6
ISO 5211: F03/05/07
Insert size: 14
Resistance heater
Manual override by key (included),
